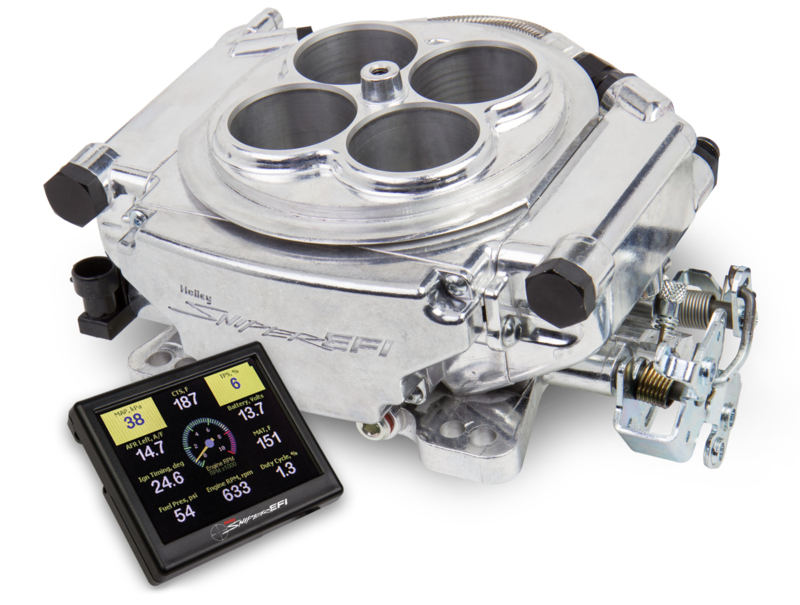

Holley Sniper EFI 4 Barrel Fuel Injection Conversion - Self-Tuning Master Kit + Handheld EFI Monitor - Shiny Finish
Artikelnummer: 550-510k
SPECS
| Brand | Holley Sniper EFI |
|---|---|
| CFM | 800 |
| Emission Code | 3 |
| Finish | Shiny |
| Flange Style | Dual Bolt Pattern |
| Fuel Pressure | 58.5 PSI |
| Fuel System Type | Return |
| Height | 3.28" |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 9/16-18 Female O-Ring (AN 6) |
| MAP Sensor | 2Bar |
| Max Horsepower Rating | 650 Naturally Aspirated |
| Product Type | Sniper EFI 4150 |
| Transmission | 700R4/200R4 |
| TH350 |
Holley just brought EFI within range
Features:
- Dual Pattern bolt on carburetor replacement, designed to fit 4150 Flange & Spread Bore manifolds - (Spread Bore Sealing Plate Part #9006 is recommended)
- Throttle body mounted ECU – no extra boxes to mount
- Supports up to 650hp with Four 100 Lb/Hr Injectors!
- Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
- Includes complete fuel system consisting of; 20ft of 3/8” Vapor Guard Fuel Hose, Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!
- Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
- Integrated ignition timing control & coil driver
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays.
- Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
- OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service.
- Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
- Patent Pending
