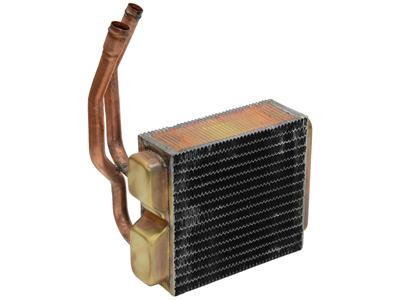

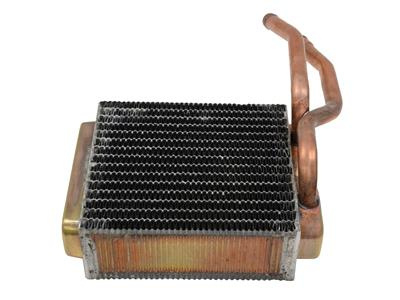

68-77 COPPER / BRASS HEATER CORE WITH AIR CONDITIONING
Artikelnummer: 453020
Replace that old heater core before it leaks and ruins your expensive carpet set! Corvette Central suggests you order a heater gasket kit at the same time.
Questions: Is this Heater Core Copper or Brass?
Answer: Yes, both.
The formed tanks, channels, and tubes on this 1968-1977 Corvette Heater Core are brass. The water channels and air fins are roll formed from a copper ribbon. The assembly is held together with a flux and solder dipping process to prevent leakage.
This C3 Corvette heater core measures 8 1/2" overall lenght, end tank to end tank. The center core measures 7 1/2" wide x 6 1/2" tall
| GM Item No. | 3015145 52484060 |
| Paragon Item No. | 5770 |
| Base Unit of Measure | EA |
| Net Weight | 3.8 |
| Car Years 1 | 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 |
| Part # | 453020 |
| Search Description | C3 CORVETTE AIR CONDITIONING A/C DASH CORES |
